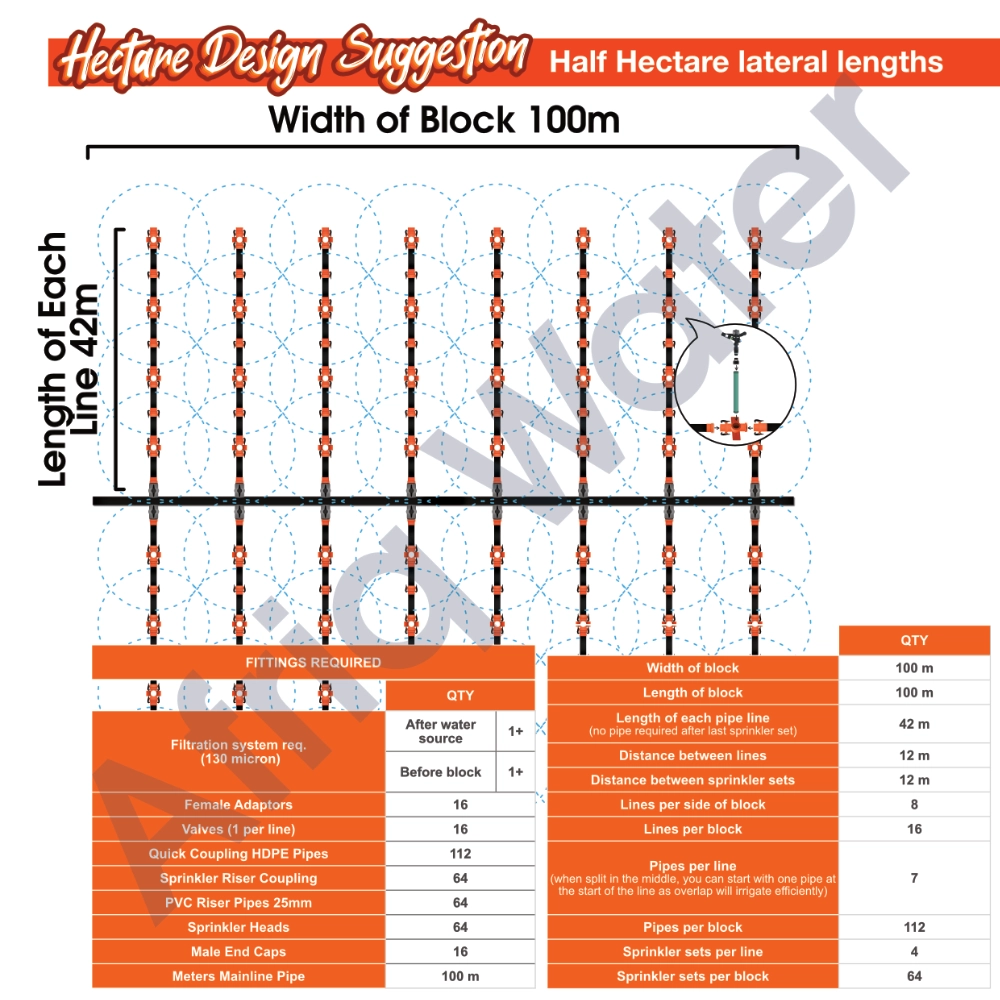

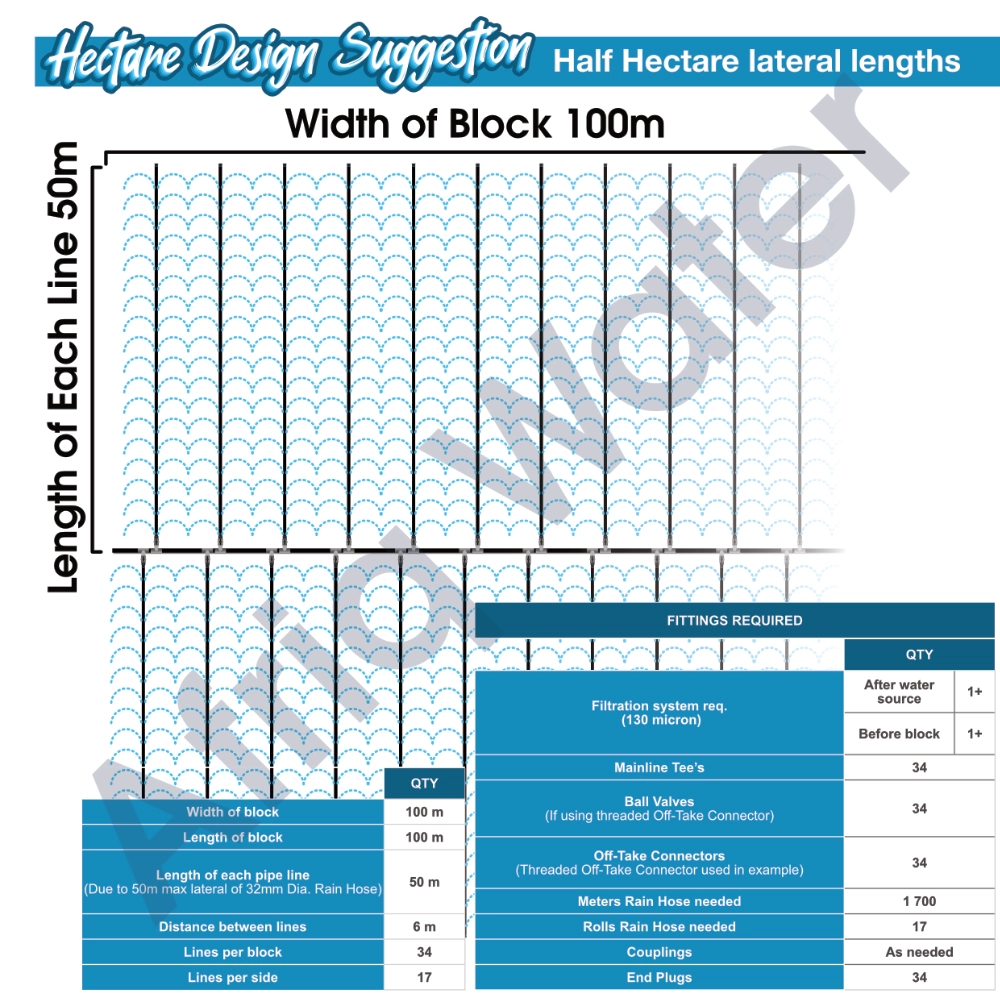

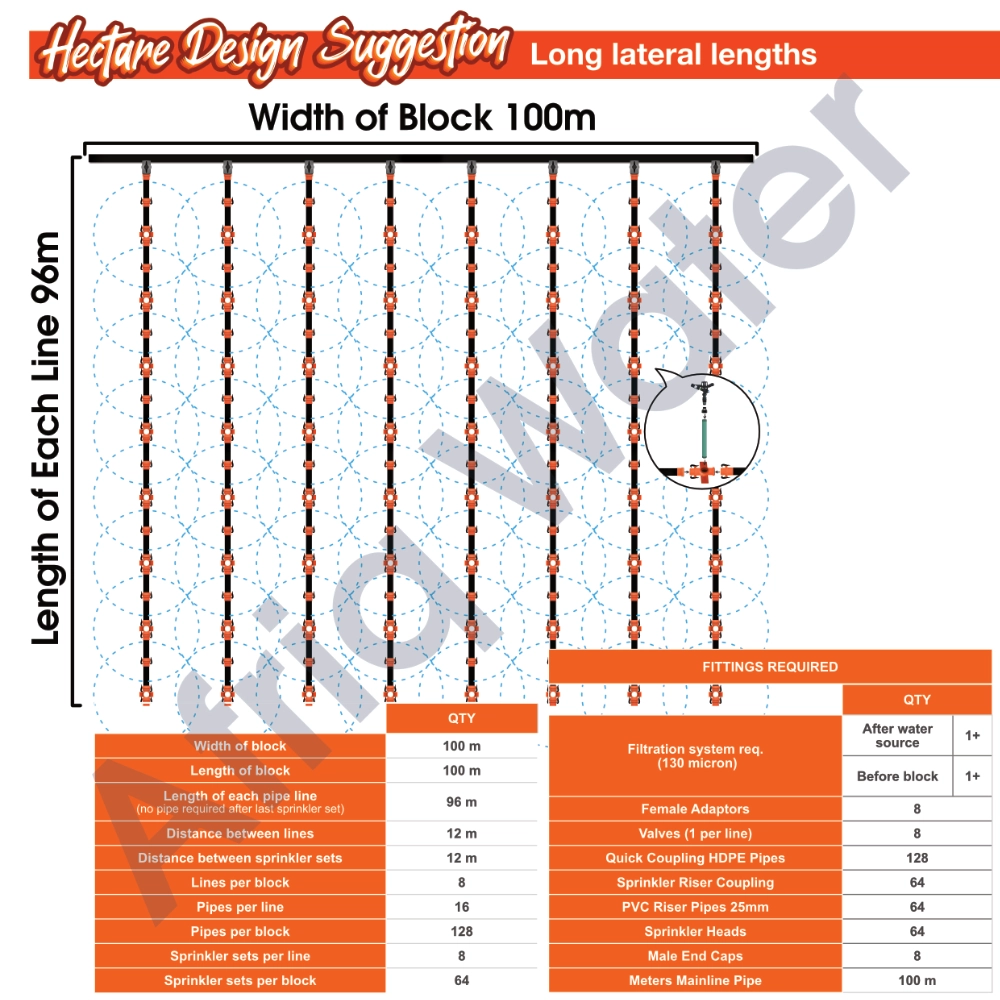

Irrigation Layout Designs

Make the most out of your irrigation system with some of these recommended layouts

Most of our systems are modular, so customise them to suit your needs!

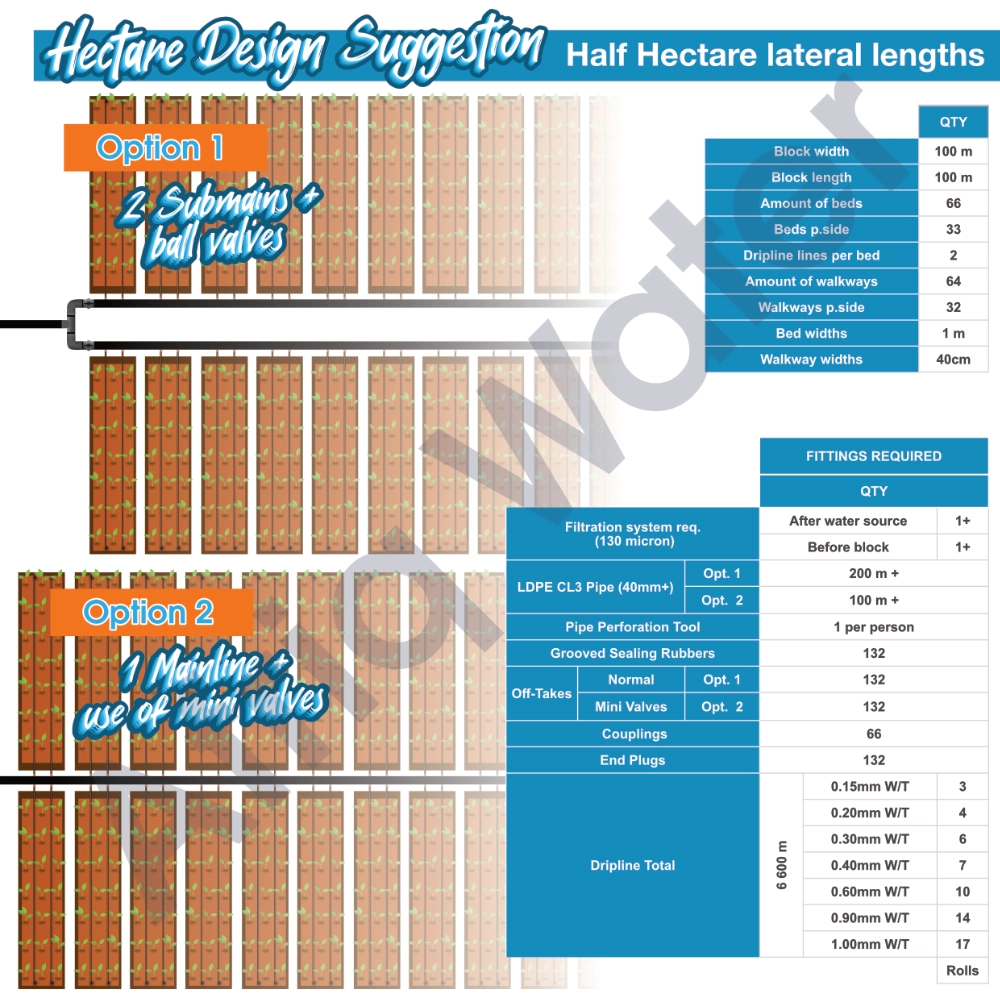

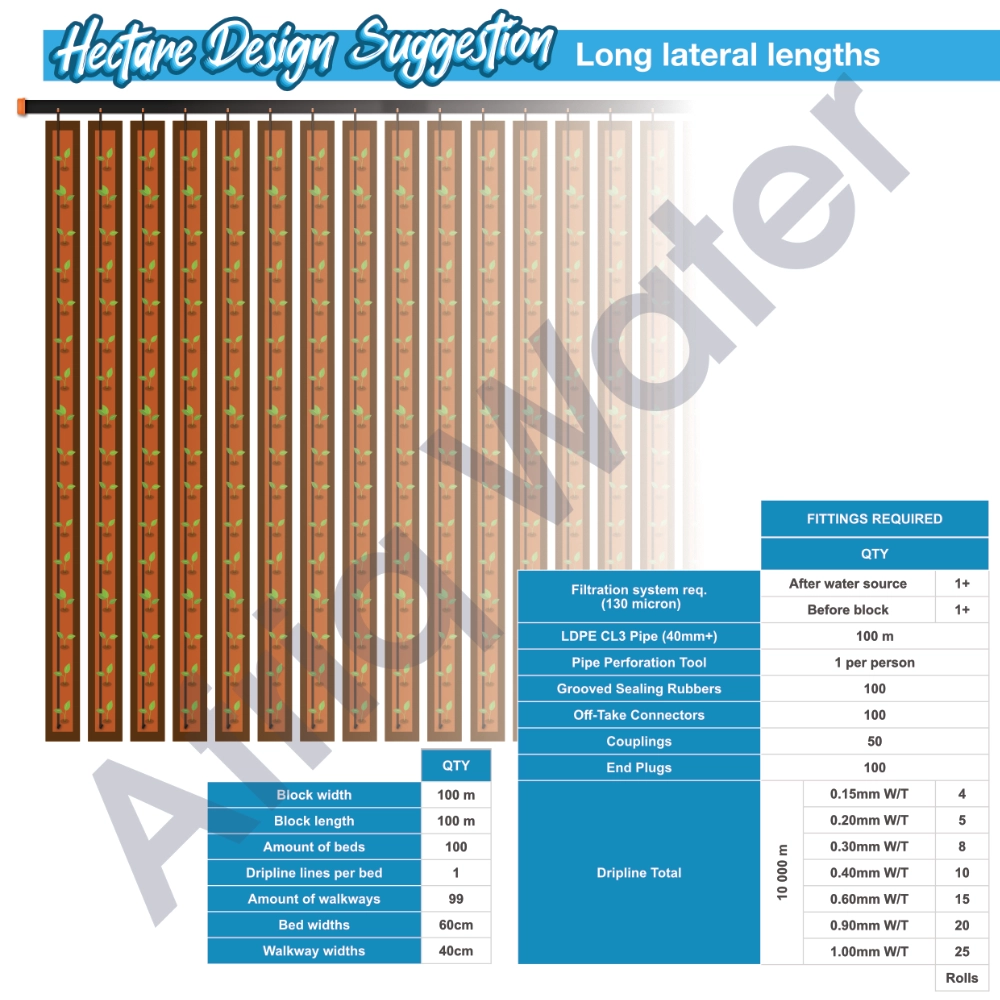

Dripline Irrigation

How to install your fittings

Dripline Kits

Dripline Kit Calculator

Select your dripline kit Length of bed (m) Width of bed (m) Spacing between lines (cm) (60 cm or smaller between lines recommended)

Quick Coupling HDPE

Quick Coupling Video

Fertilizer Tanks

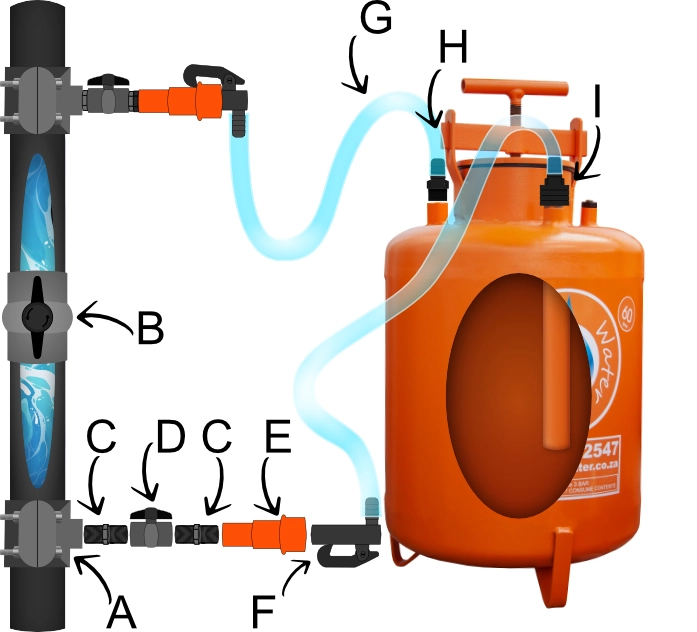

Fitting		QTY
A	Clamp Saddle for mainline (mainline size to 25mm)	2
B	Mainline valve saddle for mainline	1
C	25mm Hex Barrel Nipples	4
D	25mm Secondary Ball Valves	2
E	25mm Secondary Ball Valves	2
F	20mm Latch Fittings	2
G	1m Pipe * (clear tubing used for illustration purposes only, high pressure pipe required)	2
H	Male Adaptor for Outlet *	1
I	Female Adaptor for Inlet *	1
J	Ball Valve for Drain *	1
	14mm - 32mm Clamps	4
	19mm x 10m PTFE Tape	1

*Please note: Inlet, outlet and drain sizes can differ between either 20mm or 25mm due to manufacturing variations. Measure before purchasing fittings.
