Irrigation Sprinkler Heads
Erhas Agricultural Irrigation Sprinklers are produced to the highest standards
- The sprinklers are manufactured from robust plastic material that is UV resistant
- The sprinkler is fitted with a Teflon bearing, resulting in easy and continuous rotation
- The sprinkler is fitted with an adjustable stainless steel spring, allowing the sprinkler to work at all pressure ratings and accommodate various rotation speeds.
- The sprinkler comes with a full set of changeable nozzles, with different flow rates
- The nozzles are manufactured with grooves and water spreading pins on this inside, as a result the water is sprinkled in a cyclone shape and in tiny particles. Therefore the rain is evenly distributed over the whole irrigation area

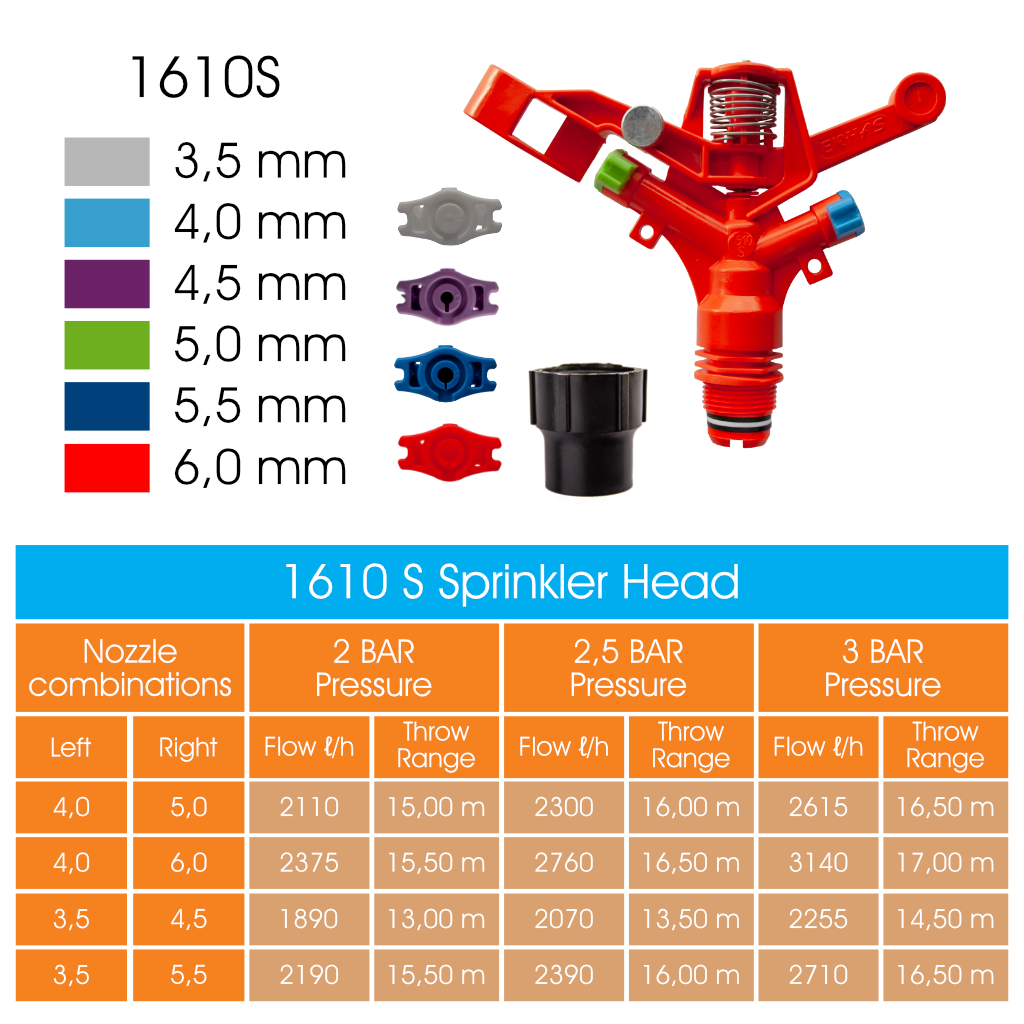

Sprinkler 1610S
Nozzle Diameter:
4mm – 5 mm; 4,0 - 6,0 mm; 3,5 - 4,5 mm; 3,5 - 5,5 mm
Adaptor Dia:
Female 25mm / Male ¾ inch
Flow:
from 1050 lit/h to 2915 lit/h
Throw Range:
from 12m to 17m
Sprinkler 1610SK
Nozzle Diameter:
High Flow 4mm – 5 mm; 4,0 - 6,0 mm; 3,5 - 4,5 mm; 3,5 - 6,0 mm; Low Flow 2,3 - 3,8 mm
Adaptor Dia:
Female 25mm / Male ¾ inch
Flow:
from 2110 lit/h to 2710 lit/h
Throw Range:
from 13m to 17m
Sprinkler ATOM15LF
Range of Usable Nozzle Diameter:
4mm – 5mm
Range of water consumption:
1.1m3/h – 2.5m3/h
Range of Shooting:
12meter– 16meter
Body Angle:
27° - 22°
Sprinkler ATOM15FC
Range of Usable Nozzle Diameter:
5mm – 6.5mm
Range of water consumption:
2 m3/h – 2m3/h
Range of Shooting:
14meter– 18meter
Body Angle:
27° - 22°
Sprinkler ATOM15PC
Range of Usable Nozzle Diameter:
5mm – 6.5mm
Range of water consumption:
1,35 m3/h – 3,5 m3/h
Range of Shooting:
12meter– 18meter
Body Angle:
23°
